springboot之log4j或logback日志脱敏
发布于: 2024-08-22 更新于: 2024-08-22 分类于:  阅读次数:

一：介绍

1
2
为了防止日志泄露造成的敏感信息外露出去，比如：姓名，手机号，身份证号，
密码，地址等信息，所以在进行日志输出的日志需要做脱敏处理。

二：效果

  • 脱敏前

    1
    2
    3
    4
    5
    2024-08-22 12:18:14.121 [http-nio-10047-exec-2] INFO  c.vji.demo2.controller.ApiController [26] - data:{"msg":"success","code":1,"idCard":"41140219930989876X","name":"李四","mobile":"17898981762"}
    2024-08-22 12:18:14.121 [http-nio-10047-exec-2] INFO  c.vji.demo2.controller.ApiController [27] - customerName:张三
    2024-08-22 12:18:14.122 [http-nio-10047-exec-2] INFO  c.vji.demo2.controller.ApiController [28] - mobile:13178787822
    2024-08-22 12:18:14.122 [http-nio-10047-exec-2] INFO  c.vji.demo2.controller.ApiController [29] - address:上海市黄浦区
    2024-08-22 12:18:14.122 [http-nio-10047-exec-2] INFO  c.vji.demo2.controller.ApiController [30] - idCard:41140219930989876X

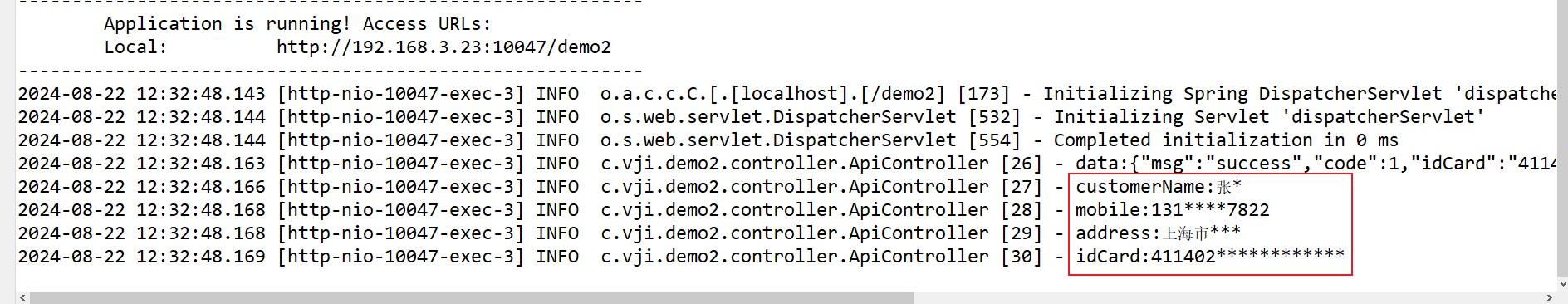

  • 脱敏后

    1
    2
    3
    4
    5
    2024-08-22 12:18:36.372 [http-nio-10047-exec-1] INFO  c.vji.demo2.controller.ApiController [26] - data:{"msg":"success","code":1,"idCard":"411402************","name":"李*","mobile":"178****1762"}
    2024-08-22 12:18:36.375 [http-nio-10047-exec-1] INFO  c.vji.demo2.controller.ApiController [27] - customerName:张*
    2024-08-22 12:18:36.376 [http-nio-10047-exec-1] INFO  c.vji.demo2.controller.ApiController [28] - mobile:131****7822
    2024-08-22 12:18:36.376 [http-nio-10047-exec-1] INFO  c.vji.demo2.controller.ApiController [29] - address:上海市***
    2024-08-22 12:18:36.378 [http-nio-10047-exec-1] INFO  c.vji.demo2.controller.ApiController [30] - idCard:411402************

三：springboot+log4j2实现日志脱敏

  • 方案

    1
    自定义PatternLayout，重写序列化方法然后执行正则筛选然后脱敏处理。

  • MyPatternLayout.java

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    172
    173
    174
    175
    176
    177
    178
    179
    180
    181
    182
    183
    184
    185
    186
    187
    188
    189
    190
    191
    192
    193
    194
    195
    196
    197
    198
    199
    200
    201
    202
    203
    204
    205
    package com.vji.demo1.config;

    import java.nio.charset.Charset;
    import java.util.Arrays;
    import java.util.HashMap;
    import java.util.Map;
    import java.util.Set;
    import java.util.regex.Matcher;
    import java.util.regex.Pattern;
    import java.util.stream.Collectors;

    import org.apache.commons.collections4.MapUtils;
    import org.apache.commons.lang3.StringUtils;
    import org.apache.logging.log4j.core.Layout;
    import org.apache.logging.log4j.core.LogEvent;
    import org.apache.logging.log4j.core.config.Node;
    import org.apache.logging.log4j.core.config.plugins.Plugin;
    import org.apache.logging.log4j.core.config.plugins.PluginAttribute;
    import org.apache.logging.log4j.core.config.plugins.PluginFactory;
    import org.apache.logging.log4j.core.layout.AbstractStringLayout;
    import org.apache.logging.log4j.core.layout.PatternLayout;

    import com.alibaba.fastjson.JSON;

    import lombok.extern.slf4j.Slf4j;

    /**
     * @author RenJie
     */
    @Plugin(name = "MyPatternLayout", category = Node.CATEGORY, elementType = Layout.ELEMENT_TYPE, printObject = true)
    @Slf4j
    public class MyPatternLayout extends AbstractStringLayout {

    	private final PatternLayout patternLayout;

    	protected MyPatternLayout(Charset charset, String pattern) {
    		super(charset);
    		//这里是为了使用原本layout携带的格式
    		this.patternLayout = PatternLayout.newBuilder().withPattern(pattern).build();
    		//初始化脱敏规则
    		initRule();
    	}

    	@Override
    	public String toSerializable(LogEvent event) {
    		// 实现你的自定义逻辑来格式化LogEvent
    		// 例如：
    //		return "自定义格式: " + event.getMessage().getFormattedMessage() + "\n";
    //    	return "自定义:" + patternLayout.toSerializable(event);
    		//脱敏处理
    		return hideMarkLog(patternLayout.toSerializable(event));
    	}

    	// 工厂方法，用于在配置文件中创建CustomLayout实例
    	@PluginFactory
    	public static MyPatternLayout createLayout(
    			@PluginAttribute(value = "charset", defaultString = "UTF-8") Charset charset,
    			@PluginAttribute(value = "pattern", defaultString = "[%d{yyyy-MM-dd HH:mm:ss}] %-5level %logger{36} - %msg%n") String pattern
    	// 可以添加其他配置属性
    	) {
    		// 这里可以根据需要添加对配置属性的处理
    		return new MyPatternLayout(charset, pattern);
    	}

    	/**
    	 * 要匹配的正则表达式map
    	 */
    	private static final Map<String, Pattern> REG_PATTERN_MAP = new HashMap<>();
    	private static final Map<String, String> KEY_REG_MAP = new HashMap<>();

    	private void initRule() {
    		try {
    			if (MapUtils.isEmpty(Log4j2Rule.regularMap)) {
    				return;
    			}
    			Log4j2Rule.regularMap.forEach((a, b) -> {
    				if (StringUtils.isNotBlank(a)) {
    					Map<String, String> collect = Arrays.stream(a.split(","))
    							.collect(Collectors.toMap(c -> c, w -> b, (key1, key2) -> key1));
    					KEY_REG_MAP.putAll(collect);
    				}
    				Pattern compile = Pattern.compile(b);
    				REG_PATTERN_MAP.put(b, compile);
    			});

    			log.info("KEY_REG_MAP:{}", JSON.toJSONString(KEY_REG_MAP));
    			log.info("REG_PATTERN_MAP:{}", JSON.toJSONString(REG_PATTERN_MAP));

    		} catch (Exception e) {
    			log.info(">>>>>> 初始化日志脱敏规则失败 ERROR：{0}", e);
    		}

    	}

    	/**
    	 * 处理日志信息，进行脱敏 1.判断配置文件中是否已经配置需要脱敏字段 2.判断内容是否有需要脱敏的敏感信息 2.1 没有需要脱敏信息直接返回 2.2 处理:
    	 * 身份证 ,姓名,手机号,地址敏感信息
    	 */
    	public String hideMarkLog(String logStr) {
    		try {
    			// 1.判断配置文件中是否已经配置需要脱敏字段
    			if (StringUtils.isBlank(logStr) || MapUtils.isEmpty(KEY_REG_MAP) || MapUtils.isEmpty(REG_PATTERN_MAP)) {
    				return logStr;
    			}
    			// 2.判断内容是否有需要脱敏的敏感信息
    			Set<String> charKeys = KEY_REG_MAP.keySet();
    			for (String key : charKeys) {
    				if (logStr.contains(key)) {
    					String regExp = KEY_REG_MAP.get(key);
    					logStr = matchingAndEncrypt(logStr, regExp, key);
    				}
    			}
    			return logStr;
    		} catch (Exception e) {
    			log.info(">>>>>>>>> 脱敏处理异常 ERROR:{0}", e);
    			// 如果抛出异常为了不影响流程，直接返回原信息
    			return logStr;
    		}
    	}

    	/**
    	 * 正则匹配对应的对象。
    	 *
    	 * @param msg    日志对象
    	 * @param regExp 正则匹配
    	 * @param key    字段
    	 * @return 找到对应对象
    	 */
    	private static String matchingAndEncrypt(String msg, String regExp, String key) {
    		Pattern pattern = Pattern.compile(regExp);
    		Matcher matcher = pattern.matcher(msg);
    		int length = key.length() + 5;
    		boolean names = Log4j2Rule.USER_NAME_STR.contains(key);
    		boolean address = Log4j2Rule.USER_ADDRESS_STR.contains(key);
    		boolean phones = Log4j2Rule.USER_PHONE_STR.contains(key);
    		boolean idcard = Log4j2Rule.USER_IDCARD_STR.contains(key);
    		String hiddenStr = "";
    		StringBuffer result = new StringBuffer(msg);
    		int i = 0;
    		while (matcher.find()) {
    			String originStr = matcher.group();
    			// 计算关键词和需要脱敏词的距离小于5。
    			i = msg.indexOf(originStr, i);
    			if (i < 0) {
    				continue;
    			}
    			int span = i - length;
    			int startIndex = Math.max(span, 0);
    			String substring = msg.substring(startIndex, i);
    			if (StringUtils.isBlank(substring) || !substring.contains(key)) {
    				i += key.length();
    				continue;
    			}
    			if (names) {
    				hiddenStr = hideMarkStr(originStr, 1);
    			} else if (phones) {
    				hiddenStr = hideMarkStr(originStr, 2);
    			} else if (address) {
    				hiddenStr = hideMarkStr(originStr, 3);
    			} else if (idcard) {
    				hiddenStr = hideMarkStr(originStr, 4);
    			}
    			msg = result.replace(i, i + originStr.length(), hiddenStr).toString();
    		}
    		return msg;
    	}

    	/**
    	 * 标记敏感文字规则
    	 *
    	 * @param needHideMark 日志对象
    	 * @param type         脱敏规则类型 1为姓名脱敏规则，2为姓名脱敏规则手机号，3为地址脱敏规则，4为身份证脱敏规则
    	 * @return 返回过敏字段
    	 */
    	private static String hideMarkStr(String needHideMark, int type) {
    		if (StringUtils.isBlank(needHideMark)) {
    			return "";
    		}
    		int startSize = 0, endSize = 0, mark = 0, length = needHideMark.length();

    		StringBuffer hideRegBuffer = new StringBuffer("(\\S{");
    		StringBuffer replaceSb = new StringBuffer("$1");
    		if (type == 1) {
    			startSize = 1;
    		} else if (type == 2) {
    			int i = length / 3;
    			startSize = i;
    			endSize = i + 1;
    		} else if (type == 3) {
    			startSize = 3;
    		} else if (type == 4) {
    			startSize = 6;
    		}
    		mark = length - startSize - endSize;
    		for (int i = 0; i < mark; i++) {
    			replaceSb.append("*");
    		}
    		hideRegBuffer.append(startSize).append("})\\S*(\\S{").append(endSize).append("})");
    		replaceSb.append("$2");
    		needHideMark = needHideMark.replaceAll(hideRegBuffer.toString(), replaceSb.toString());
    		return needHideMark;
    	}

    }

  • Log4j2Rule.java

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    package com.vji.demo1.config;


    import java.util.HashMap;
    import java.util.Map;

    /**
    * 拦截脱敏的日志:
    * 1，身份证
    * 2，姓名
    * 3，身份证号 （目前暂时不脱敏）
    * 4、地址
    * 脱敏规则后续可以优化在配置文件中
    *
    **/
    public class Log4j2Rule {

       /**
        * 正则匹配 关键词 类别
        */
       public static Map<String, String> regularMap = new HashMap<>();
       //用戶名字段名
       public static final String USER_NAME_STR = "name,userName,petName,nickName,customerName";
       //地址 字段名
       public static final String USER_ADDRESS_STR = "receiveAddress,address,order_address";
       //身份证 字段名
       public static final String USER_IDCARD_STR = "idCard,cardNumber";
       //手机号 字段名
       public static final String USER_PHONE_STR = "mobile,phone,phoneNum,phoneNumber,cellPhone,agentMobile,telephone";

       /**
        * 正则匹配，根据业务要求自定义
        */
       //身份证正则
       private static final String IDCARD_REGEXP = "(\\d{17}[0-9Xx]|\\d{14}[0-9Xx])";
       //用户名正则
       private static final String USERNAME_REGEXP = "[\\u4e00-\\u9fa5_a-zA-Z0-9-]{2,50}";
       //地址正则
       private static final String ADDRESS_REGEXP = "[\\u4e00-\\u9fa5_a-zA-Z0-9-]{3,200}";
       //手机号正则
       private static final String PHONE_REGEXP = "(?<!\\d)(?:(?:1[3456789]\\d{9})|(?:861[356789]\\d{9}))(?!\\d)";

       static {
           regularMap.put(USER_NAME_STR, USERNAME_REGEXP);
           regularMap.put(USER_ADDRESS_STR, ADDRESS_REGEXP);
           regularMap.put(USER_IDCARD_STR, IDCARD_REGEXP);
           regularMap.put(USER_PHONE_STR, PHONE_REGEXP);
       }

    }

  • log4j2.xml

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    <?xml version="1.0" encoding="UTF-8"?>
    <Configuration status="WARN">
        <Layout type="com.vji.demo1.config.MyPatternLayout" charset="UTF-8"/>
        <Appenders>
            <Console name="Console" target="SYSTEM_OUT">
                <MyPatternLayout charset="UTF-8" pattern="%d{yyyy-MM-dd HH:mm:ss} [%t] %-5level %logger{36} - %msg%n"/>
            </Console>
        </Appenders>
        <Loggers>
            <Root level="info">
                <AppenderRef ref="Console"/>
            </Root>
        </Loggers>
    </Configuration>
1
2
3
4

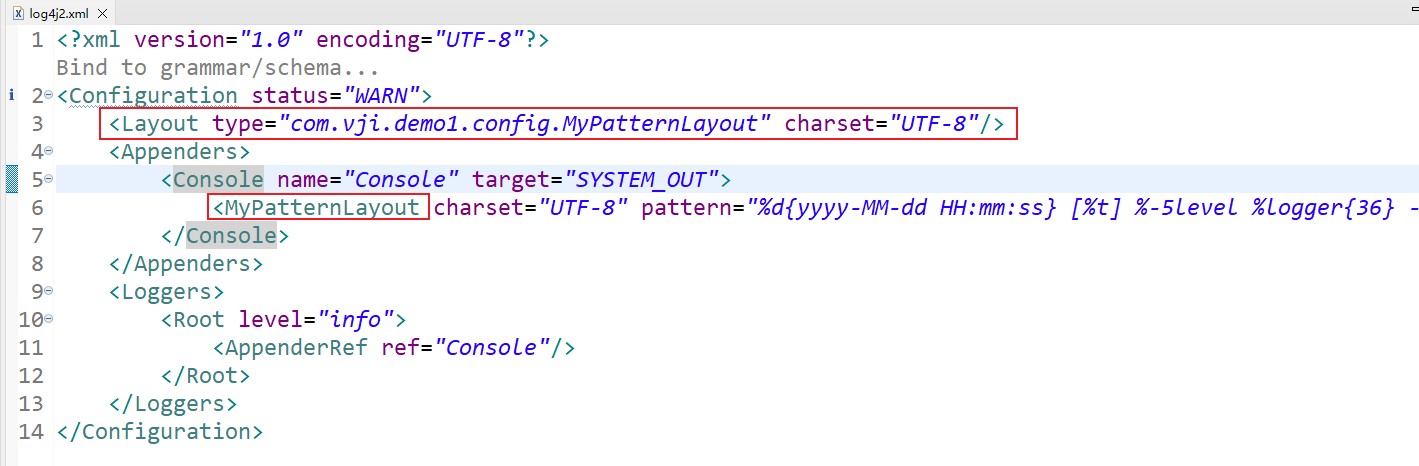

主要调整如下两点修改，网上别的地方可能只说修改第二个框的内容，
实际测试是不生效的，需要加Layout标签，如果你是eclipse工具可能
还会遇到不生效的情况，需要执行mvn clean package，使用idea不
存在这个问题，所以也加快了我替换IDE工具的步伐。


  • log4j2.xml版本2
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    <?xml version="1.0" encoding="UTF-8"?>
    <Configuration status="WARN" packages="com.vji.demo1.config">
        <Appenders>
            <Console name="Console" target="SYSTEM_OUT">
                <MyPatternLayout charset="UTF-8" pattern="%d{yyyy-MM-dd HH:mm:ss} [%t] %-5level %logger{36} - %msg%n"/>
            </Console>
        </Appenders>
        <Loggers>
            <Root level="info">
                <AppenderRef ref="Console"/>
            </Root>
        </Loggers>
    </Configuration>
1
在Configuration中把自己定义的插件包含进来，然后去掉Layout标签即可。
  • 测试
    1
    2
    测试可以使用ApiController.java中的log方法,地址是：
    http://127.0.0.1:10046/demo1/api/log

四：springboot+logback实现日志脱敏

  • 方案

    1
    自定义PatternLayout，拦截日志输出内容然后执行正则筛选然后脱敏处理。

  • MyPatternLayout.java

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    package com.vji.demo2.config;

    import java.util.Arrays;
    import java.util.HashMap;
    import java.util.Map;
    import java.util.Set;
    import java.util.regex.Matcher;
    import java.util.regex.Pattern;
    import java.util.stream.Collectors;

    import org.apache.commons.collections4.MapUtils;
    import org.apache.commons.lang3.StringUtils;

    import com.alibaba.fastjson.JSON;

    import ch.qos.logback.classic.PatternLayout;
    import ch.qos.logback.classic.spi.ILoggingEvent;
    import lombok.extern.slf4j.Slf4j;

    @Slf4j
    public class MyPatternLayout extends PatternLayout {

    	/**
    	 * 要匹配的正则表达式map
    	 */
    	private static final Map<String, Pattern> REG_PATTERN_MAP = new HashMap<>();
    	private static final Map<String, String> KEY_REG_MAP = new HashMap<>();
    	{
    		initRule();
    	}

    	@Override
    	public String doLayout(ILoggingEvent event) {
    		String message = super.doLayout(event);
    		//脱敏处理
    		return hideMarkLog(message);
    	}

    	private void initRule() {
    		try {
    			if (MapUtils.isEmpty(LogRule.regularMap)) {
    				return;
    			}
    			LogRule.regularMap.forEach((a, b) -> {
    				if (StringUtils.isNotBlank(a)) {
    					Map<String, String> collect = Arrays.stream(a.split(","))
    							.collect(Collectors.toMap(c -> c, w -> b, (key1, key2) -> key1));
    					KEY_REG_MAP.putAll(collect);
    				}
    				Pattern compile = Pattern.compile(b);
    				REG_PATTERN_MAP.put(b, compile);
    			});

    			log.info("KEY_REG_MAP:{}", JSON.toJSONString(KEY_REG_MAP));
    			log.info("REG_PATTERN_MAP:{}", JSON.toJSONString(REG_PATTERN_MAP));

    		} catch (Exception e) {
    			log.info(">>>>>> 初始化日志脱敏规则失败 ERROR：{0}", e);
    		}

    	}

    	/**
    	 * 处理日志信息，进行脱敏 1.判断配置文件中是否已经配置需要脱敏字段 2.判断内容是否有需要脱敏的敏感信息 2.1 没有需要脱敏信息直接返回 2.2 处理:
    	 * 身份证 ,姓名,手机号,地址敏感信息
    	 */
    	public String hideMarkLog(String logStr) {
    		try {
    			// 1.判断配置文件中是否已经配置需要脱敏字段
    			if (StringUtils.isBlank(logStr) || MapUtils.isEmpty(KEY_REG_MAP) || MapUtils.isEmpty(REG_PATTERN_MAP)) {
    				return logStr;
    			}
    			// 2.判断内容是否有需要脱敏的敏感信息
    			Set<String> charKeys = KEY_REG_MAP.keySet();
    			for (String key : charKeys) {
    				if (logStr.contains(key)) {
    					String regExp = KEY_REG_MAP.get(key);
    					logStr = matchingAndEncrypt(logStr, regExp, key);
    				}
    			}
    			return logStr;
    		} catch (Exception e) {
    			log.info(">>>>>>>>> 脱敏处理异常 ERROR:{0}", e);
    			// 如果抛出异常为了不影响流程，直接返回原信息
    			return logStr;
    		}
    	}

    	/**
    	 * 正则匹配对应的对象。
    	 *
    	 * @param msg    日志对象
    	 * @param regExp 正则匹配
    	 * @param key    字段
    	 * @return 找到对应对象
    	 */
    	private static String matchingAndEncrypt(String msg, String regExp, String key) {
    		Pattern pattern = Pattern.compile(regExp);
    		Matcher matcher = pattern.matcher(msg);
    		int length = key.length() + 5;
    		boolean names = LogRule.USER_NAME_STR.contains(key);
    		boolean address = LogRule.USER_ADDRESS_STR.contains(key);
    		boolean phones = LogRule.USER_PHONE_STR.contains(key);
    		boolean idcard = LogRule.USER_IDCARD_STR.contains(key);
    		String hiddenStr = "";
    		StringBuffer result = new StringBuffer(msg);
    		int i = 0;
    		while (matcher.find()) {
    			String originStr = matcher.group();
    			// 计算关键词和需要脱敏词的距离小于5。
    			i = msg.indexOf(originStr, i);
    			if (i < 0) {
    				continue;
    			}
    			int span = i - length;
    			int startIndex = Math.max(span, 0);
    			String substring = msg.substring(startIndex, i);
    			if (StringUtils.isBlank(substring) || !substring.contains(key)) {
    				i += key.length();
    				continue;
    			}
    			if (names) {
    				hiddenStr = hideMarkStr(originStr, 1);
    			} else if (phones) {
    				hiddenStr = hideMarkStr(originStr, 2);
    			} else if (address) {
    				hiddenStr = hideMarkStr(originStr, 3);
    			} else if (idcard) {
    				hiddenStr = hideMarkStr(originStr, 4);
    			}
    			msg = result.replace(i, i + originStr.length(), hiddenStr).toString();
    		}
    		return msg;
    	}

    	/**
    	 * 标记敏感文字规则
    	 *
    	 * @param needHideMark 日志对象
    	 * @param type         脱敏规则类型 1为姓名脱敏规则，2为姓名脱敏规则手机号，3为地址脱敏规则，4为身份证脱敏规则
    	 * @return 返回过敏字段
    	 */
    	private static String hideMarkStr(String needHideMark, int type) {
    		if (StringUtils.isBlank(needHideMark)) {
    			return "";
    		}
    		int startSize = 0, endSize = 0, mark = 0, length = needHideMark.length();

    		StringBuffer hideRegBuffer = new StringBuffer("(\\S{");
    		StringBuffer replaceSb = new StringBuffer("$1");
    		if (type == 1) {
    			startSize = 1;
    		} else if (type == 2) {
    			int i = length / 3;
    			startSize = i;
    			endSize = i + 1;
    		} else if (type == 3) {
    			startSize = 3;
    		} else if (type == 4) {
    			startSize = 6;
    		}
    		mark = length - startSize - endSize;
    		for (int i = 0; i < mark; i++) {
    			replaceSb.append("*");
    		}
    		hideRegBuffer.append(startSize).append("})\\S*(\\S{").append(endSize).append("})");
    		replaceSb.append("$2");
    		needHideMark = needHideMark.replaceAll(hideRegBuffer.toString(), replaceSb.toString());
    		return needHideMark;
    	}
    }

  • logRule.java

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    package com.vji.demo2.config;


    import java.util.HashMap;
    import java.util.Map;

    /**
    * 拦截脱敏的日志:
    * 1，身份证
    * 2，姓名
    * 3，身份证号 （目前暂时不脱敏）
    * 4、地址
    * 脱敏规则后续可以优化在配置文件中
    *
    **/
    public class LogRule {

       /**
        * 正则匹配 关键词 类别
        */
       public static Map<String, String> regularMap = new HashMap<>();
       //用戶名字段名
       public static final String USER_NAME_STR = "name,userName,petName,nickName,customerName";
       //地址 字段名
       public static final String USER_ADDRESS_STR = "receiveAddress,address,order_address";
       //身份证 字段名
       public static final String USER_IDCARD_STR = "idCard,cardNumber";
       //手机号 字段名
       public static final String USER_PHONE_STR = "mobile,phone,phoneNum,phoneNumber,cellPhone,agentMobile,telephone";

       /**
        * 正则匹配，根据业务要求自定义
        */
       //身份证正则
       private static final String IDCARD_REGEXP = "(\\d{17}[0-9Xx]|\\d{14}[0-9Xx])";
       //用户名正则
       private static final String USERNAME_REGEXP = "[\\u4e00-\\u9fa5_a-zA-Z0-9-]{2,50}";
       //地址正则
       private static final String ADDRESS_REGEXP = "[\\u4e00-\\u9fa5_a-zA-Z0-9-]{3,200}";
       //手机号正则
       private static final String PHONE_REGEXP = "(?<!\\d)(?:(?:1[3456789]\\d{9})|(?:861[356789]\\d{9}))(?!\\d)";

       static {
           regularMap.put(USER_NAME_STR, USERNAME_REGEXP);
           regularMap.put(USER_ADDRESS_STR, ADDRESS_REGEXP);
           regularMap.put(USER_IDCARD_STR, IDCARD_REGEXP);
           regularMap.put(USER_PHONE_STR, PHONE_REGEXP);
       }

    }

  • logback-spring.xml

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    <?xml version="1.0" encoding="UTF-8"?>
    <configuration debug="true">

    	<!-- 彩色日志 -->
    	<!-- 彩色日志依赖的渲染类 -->
    	<conversionRule conversionWord="clr"
    		converterClass="org.springframework.boot.logging.logback.ColorConverter" />
    	<conversionRule conversionWord="wex"
    		converterClass="org.springframework.boot.logging.logback.WhitespaceThrowableProxyConverter" />
    	<!-- 彩色日志格式 -->
    	<property name="CONSOLE_LOG_PATTERN"
    		value="%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{36} [%line] - %msg%n" />

    	<!--输出到控制台 -->
    	<appender name="CONSOLE"
    		class="ch.qos.logback.core.ConsoleAppender">
    		<encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
    			<Layout class="com.vji.demo2.config.MyPatternLayout">
    				<pattern>${CONSOLE_LOG_PATTERN}</pattern>
    			</Layout>
    			<charset>UTF-8</charset>
    		</encoder>
    	</appender>

    	<root level="info">
    		<appender-ref ref="CONSOLE" />
    	</root>

    </configuration>
1
2

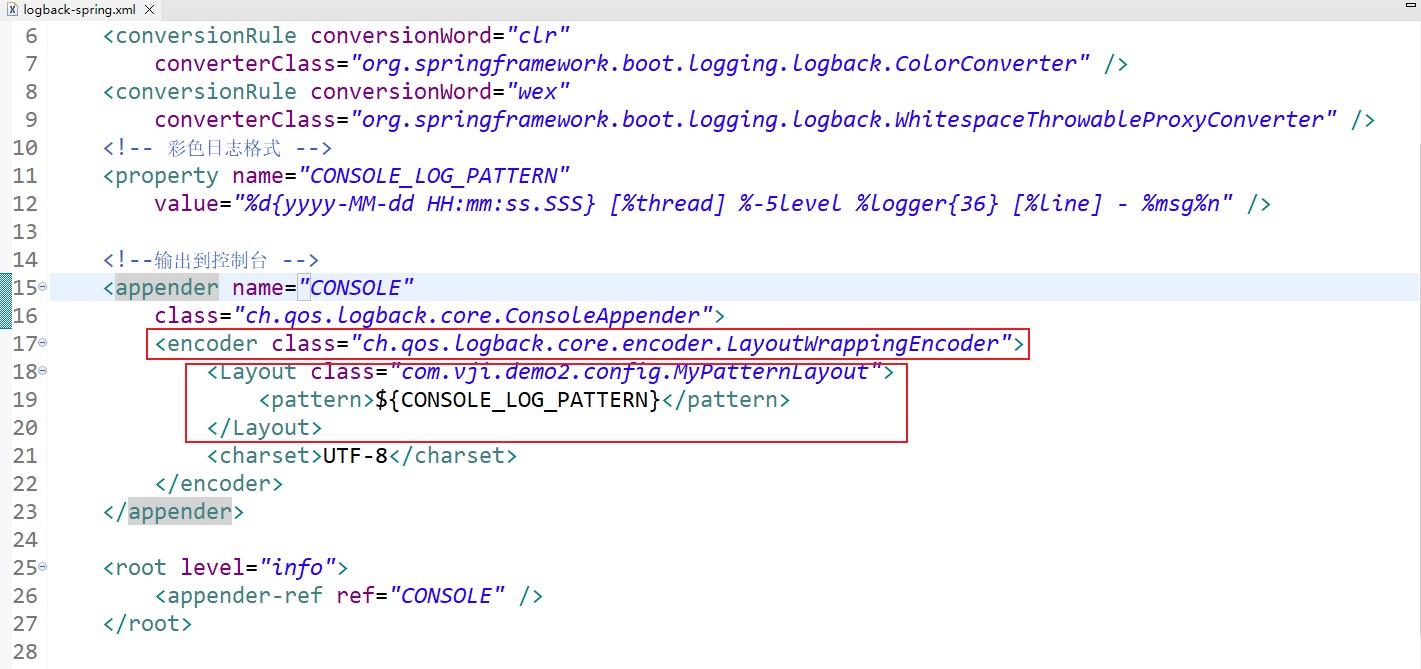

修改两点，encoder加行class="ch.qos.logback.core.encoder.LayoutWrappingEncoder"，
然后定义Layout标签，将自己自定义的Layout写进去。


  • 测试
    1
    2
    测试可以使用ApiController.java中的log方法,地址是：
    http://127.0.0.1:10047/demo2/api/log

五：总结

1
2
网上有很多例子，可能由于某些版本问题亲测下来不能使用，我这里使用的是
jdk17,springboot3.2.8,log4j2,logback。
  • 结果


*************感谢您的阅读*************
